HYBRID CNC50–400 TAUTO CROWNING

HY: Hybrid Electro-Hydraulic Bottom-Drive CNC Press Brake

HY Series · Hybrid Down-Drive CNC Press Brake. All-steel welded frame for rigidity; servo-controlled hydraulics with dual-rail backgauge and auto crowning.

Request quote →

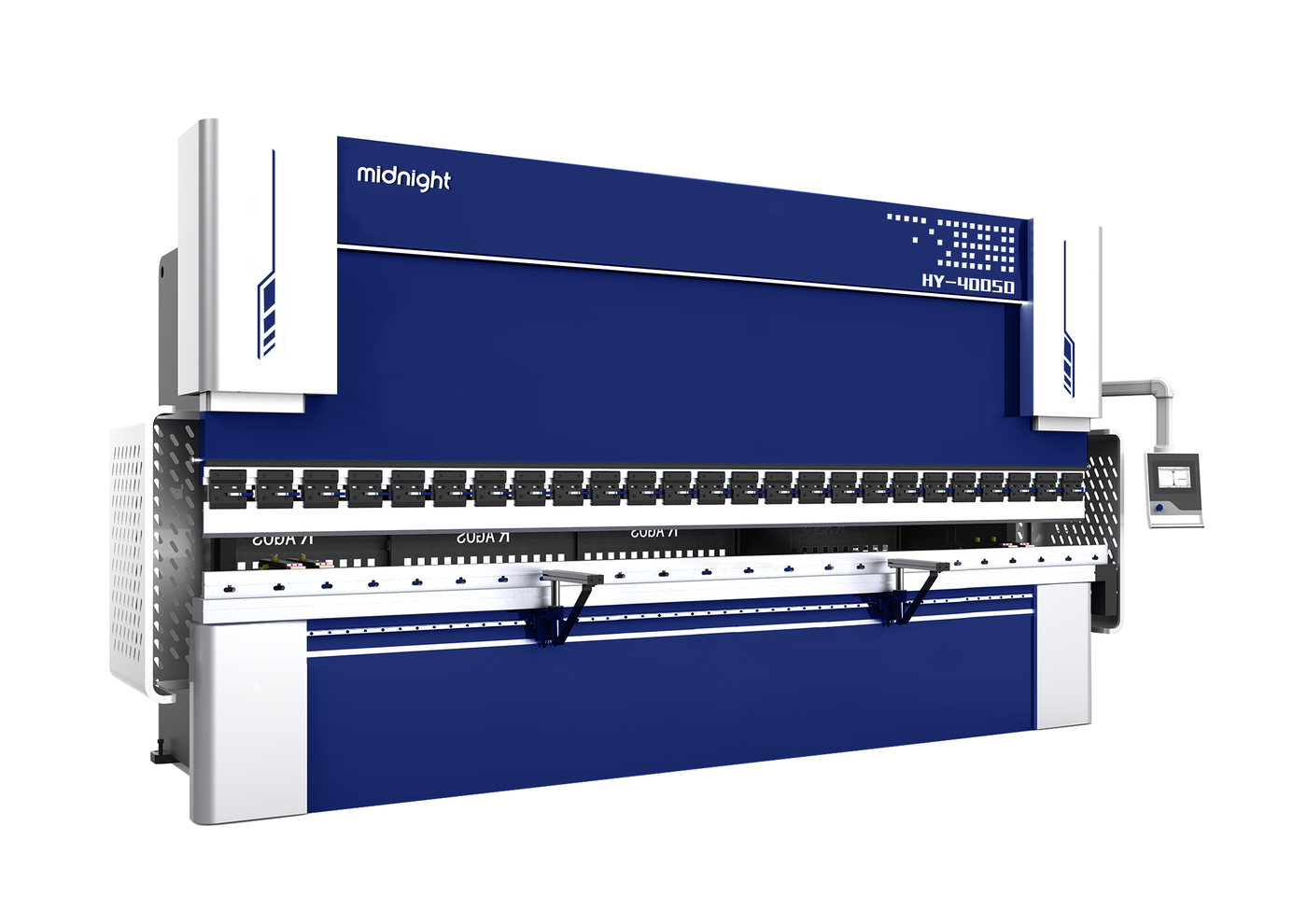

HY Hybrid CNC Press Brake

Hybrid Bending Solutions

Down-Acting Hybrid CNC Press Brake

The HY series are down-acting hybrid CNC machines with a fully steel-welded structure offering excellent rigidity and stability. A servo motor is the main control source for the hydraulics, creating an efficient, reliable system. Coupled with a multi-axis backgauge and an automatic deflection-compensation workbench, the HY series is highly effective for handling small to large, thick plates.

HY Hybrid CNC Press Brake · Overview

Specs (by tonnage)

TonnageTable lengthThroatRam strokeOpen heightMotor
50 T16003001604505.5 kW
60 T20004001604508.7 kW
80 T25004002004508.7 kW
110 T2500–40004002005008.7 kW
130 T2500–500040020050010.8 kW
170 T3200–600040020050013.2 kW
220 T3200–6000400200500/55016.7 kW
250 T3200–600040025055021.4 kW
320 T3200–600040030060026.9 kW
400 T3200–600045030060033 kW

*Each tonnage offers multiple table lengths (1.6–6 m) and models (e.g. HY-13040); contact us for full specs.

6+1 Axis Rear Backgauge

HY Hybrid CNC Press Brake · Design

  • Reserved guide-rail positions for easy upgrade to 6+1 axis
  • Z-axis (optional)
  • Guide rails on both sides for greater precision and impact resistance
  • R-axis
  • X-axis (double guide-rail structure for higher accuracy)

HY Hybrid CNC Press Brake · Design

4+1 Axis Rear Backgauge


  • Oil cylinder (extra-long stroke up to 250 mm)
  • Auxiliary guide block added to make the upper table more stable
  • Mechanical compensation workbench (accurate angle adjustment)
  • Tenon-and-mortise type welding (stable & durable)
  • Hydraulic system (stable pressure)
  • Independent fuel tank
  • Servo motor (energy-saving)
  • Optical scale

Controls

HY Hybrid CNC Press Brake · Control

Processing Interface

HY Hybrid CNC Press Brake · Control

Manual Interface

CNC System

Midnight LT 15 Standard

  • Easily switch between Sburk / Tillham operator interface
  • High-definition 15-inch colour display
  • Connection of enterprise digital management software
  • Used for 4–8 axis press brakes
  • Graphic scanning and 2D / 3D graphic display

HY Hybrid CNC Press Brake · Control

CYBELEC (Switzerland)

Model options: CT-8 / CT-12 / CT-15

  • USB interface for easy transfer of parameters and bending programs
  • Wirelessly connect, upgrade software and back up data via computer
  • Selectable axes: Y1, Y2, X, R, A1, A2, V
  • 2D / 3D graphical display, manual simulation of bending procedures
  • The "EasyBend" page allows quick, intuitive single-pass setup

DELEM (Holland)

Models available: DA53T / DA58T / DA66

  • 10.1–15" LCD TFT true-colour display
  • "Shortcut" touch navigation
  • Selectable axes: Y1, Y2, X, R, A1, A2, V
  • Deflection compensation control
  • USB external interface
  • Profile-53TL off-line programming software


Frequently asked questions

What tonnages and table lengths are available for the HY press brake?

The HY Series covers 50–400 tons, with several table lengths (1.6–6 m) and matching models per tonnage, such as the HY-13040; contact us for detailed specifications.

What are the HY's throat depth, open height and ram stroke?

Throat depth is 300 mm (50 T), 400 mm (60–320 T) and 450 mm (400 T); open height ranges from 450 to 600 mm and ram stroke from 160 to 300 mm, depending on tonnage.

How is the HY driven, and what is its main motor power?

The HY uses a servo motor as the main control source for its hydraulics on an all-steel welded frame, with main motor power from 5.5 kW (50 T) to 33 kW (400 T).
