Combining the power of sheet-metal laser cutting with the ability to process tubes and profiles, the MHL series offers unmatched flexibility across a wide range of sizes, industries and applications.

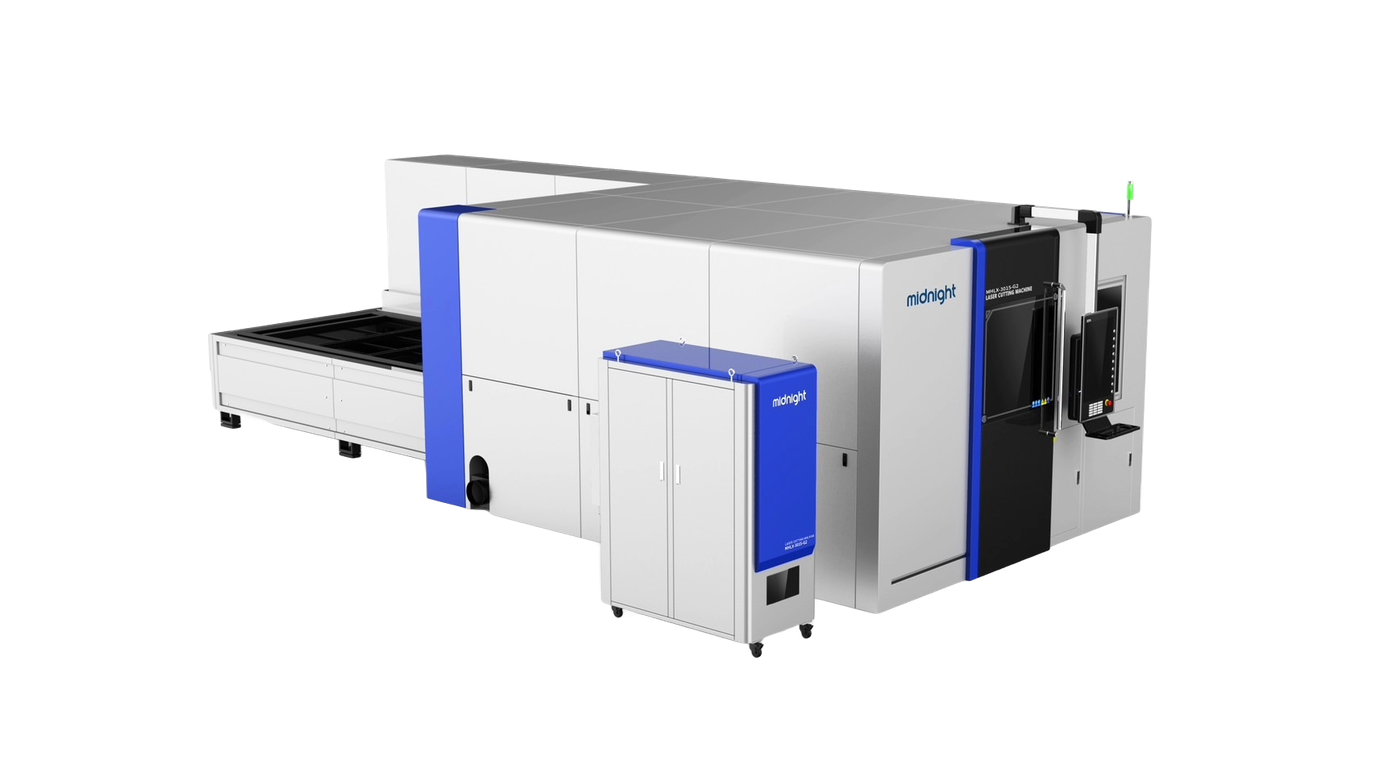

The MHLX Series are high-performance laser systems for sheet metal and tubes, featuring full safety covers, automatic exchange tables, and an automatic pneumatic chuck system
Model
Laser power
Work area
Max tube length
Max speed
Pos./Repeat.
Max rotation
Tube diameter
Weight
MHLX-3015
3–20 kW
3050×1530 mm
6 m
80 m/min
±0.05 / ±0.03 mm
80 RPM
Round 20–220 / square 20–155 mm
9 T
MHLX-4020
3–20 kW
4100×2050 mm
6 m
80 m/min
±0.05 / ±0.03 mm
80 RPM
Round 20–220 / square 20–155 mm
9.8 T
MHLS-3015
3–20 kW
3050×1530 mm
3 / 6 m
80 m/min
±0.05 / ±0.03 mm
80 RPM
Round 20–220 / square 20–155 mm
7 T
MHLS-4020
3–20 kW
4100×2050 mm
3 / 6 m
80 m/min
±0.05 / ±0.03 mm
80 RPM
Round 20–220 / square 20–155 mm
7.8 T
*Max tube weight 220 / 260 kg; 10–20mm OD tubes made to order; power draw 15–52 kW.
Robust Structure & Precision Milling The machine body is welded from high-strength steel and annealed at 600°C for 48 hours to ensure stability and durability.A three-stage milling process on an advanced six-axis milling machine creates a precise datum base for the guide rails.
Downdraft Ventilation Exhaust ports that adjust to the cutting conditions keep fume extraction efficient.
Safety Glass For operational safety, both the side panels and front door are equipped with protective laser-resistant glass.
High-Efficiency Exchange Table The MHLX series features a high-efficiency exchange table, and loaded materials can be exchanged to the cutting area within 24 seconds.
Smart Piercing Sensors monitor the piercing process so cutting starts the moment piercing completes, reducing waiting time and improving performance and efficiency.
Process Monitoring Built-in real-time monitoring: During the cutting process, if a slag is not cut completely, the cutting head will automatically retreat for re-cutting.
EtherCAT, the industrial Ethernet technology invented by Beckhoff, makes machines and systems faster, simpler and more cost-effective. Regarded as the "Ethernet fieldbus", it combines the advantages of Ethernet with the simplicity of classic fieldbus systems while avoiding the complexity of IT technologies. The open standard is managed by the EtherCAT Technology Group (ETG), founded in 2003, and is accessible to everyone.
Quick response & better accuracy
Easy connection
Short learning curve
Closed-loop control
Stability & reliability
Optional Items
Voltage Transformer & Stabilizer Air Compressor Dust Collector
