Compact Laser Cutting

High-Performance Sheet Metal Laser System

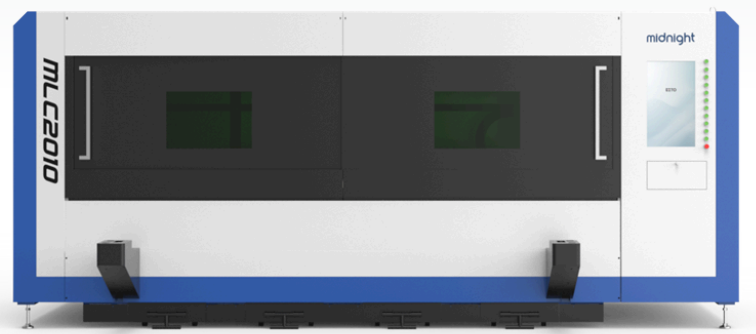

The MLC Series is a high-performance compact sheet metal laser system specially designed for small to medium production batches. Its small footprint makes it ideal for low production runs and prototyping, while its versatile design makes it easy to set up, load, and program quickly.

With full covers and drawer-style loading table, it allows for safe, ergonomic and comfortable operation without sacrificing flexibility or performance.

The MLC Series comes in two different working capacities (2x1 M and 3x1.5 M), with powers up to 6 kW. It is equipped with Midnight’s intelligent cutting heads and integrated cutting software and controls, with advanced features for collision protection, micro and nano joints, smart piercing and other functions for maximizing productional efficiency.

Specifications

Laser power	6 kW (6000W)
Net cutting area	3050×1530 mm
Positioning	±0.05 mm/m
Repositioning	±0.03 mm/m
Acceleration	0.8 G
Machine size	5091×3603×2080 mm
Voltage / freq.	380V / 50–60Hz

Cutting speed (ref.)

Material	Speed
Carbon steel	1.9–2.1 m/min
Stainless	3.4–4.5 m/min
Aluminium	0.6–0.8 m/min
Copper	3–4 m/min

Fully Enclosed Design Fully closed design with safety covers and CE certificated protective glasses ensures superior protection.

Lateral Door Design Lateral door opening design prevents the risks of lifting door failure and falling.

Compact Design

Compact design takes up minimal floor space.

Drawer-type single-pallet loading

Two support arms prevent the table from tilting during loading, and a pneumatic cylinder fixes the table to ensure stability during loading and cutting.

Cutting Head

BOCI BLT421

Laser Source

Raycus

Controls

FSCut 4000E · EtherCAT TechnologyAdaptive piercingFly cuttingMicro-jointTorque detectionAnti-collisionFrame simulationReal-time monitoringSoft acceleration & deceleration

EtherCAT

EtherCAT, the industrial Ethernet technology invented by Beckhoff, makes machines and systems faster, simpler and more cost-effective. Regarded as the "Ethernet fieldbus", it combines the advantages of Ethernet with the simplicity of classic fieldbus systems while avoiding the complexity of IT technologies. The open standard is managed by the EtherCAT Technology Group (ETG), founded in 2003, and is accessible to everyone.

Quick response & better accuracy
Easy connection
Short learning curve
Closed-loop control
Stability & reliability

Optional Items

Voltage Transformer & Stabilizer Air Compressor Dust Collector
